removing bearings

Heat the cases with a hot air gun this one cost me £20 .....if the bearing is stubborn use a socket and mallet to knock it out (the bearing will be ruined)

cleaning up

Meths is good for cleaning it evaporates quickly .......notice all the nuts and clutch springs etc soaking in DE greaser

she comes apart !

Take your time NEVER force anything

getting the clutch off

I used a bearing puller to get the clutch off.......it worked better than my clutch tool !

If you look close at the right hand side the puller it is slipping off as pressure is applied

Engine on the bench

Well i have bit the bullet and started to rebuild the engine

The main reason that made me go down this route was the clutch was set up wrong !

A word on tuning.....ok a few words !

On the bantam forum there has been a few topics raised on how to tune your bantam......i am know expert by a long shot but thought i would do some investigations on how one should proceed. The first thing most tuners put a the beginning of there articles on tuning is........make sure the bike runs right before you start , this got me thinking   in several bike manuals (especially old ones) tuning is referred to as what you might call maintenance.....make sure your tyres are in good order with the correct tyre pressures...... make sure gear box oil is changed at regular intervals.......keep the air filter clean........make sure your brakes work perfectly .......check the spark plug......check the points........check the timing.......clean the carb and check its no air leaks......i know what your thinking (because i was) BORING I KNOW ALL THIS SIMPLE STUFF....this maybe true but if you think about it .....it makes sense so before we start to tune lets TUNE ! I was looking through this months classic bike mag and behold an article on tuning and yes bantams get a mention .....basically the bloke that wrote the article can tune your bantam to 80mph without braking the bank.........I'm not too bothered but if you are give him a call Fahron engineering wighay road hucknall nottinghamshire ng158ah 01159634123

Well guys !

Well guys i haven't been up to much lately  (been busy) but there is some engine work coming soon so stay tuned......on Saturday i visited the rufforth auto jumble hoping to pick up an old d1 or something similar......well i was most disappointed there wasn't many bikes there to buy and the stalls were a bit thin on the ground too ! so i came back empty handed and a little miffed to say the least. i almost bought an old d7 engine but it had the timing side missing i was very tempted at £40 but something told me to leave it . One little note of interest my son is wanting a scooter and asked if i could get him a bargain ! anyhow there was one (yep just one) and it seemed in good nick at one year old  with tax/test and warranty left on it £550........i was very tempted but that niggle in my Head told me to leave it .......i was on eBay this morning and the same scooter was been sold as knew at £750 (Chinese cheese metal)  so the one at the jumble was way over priced .....i know its off topic but a lesson learnt KNOW WHAT YOU ARE BUYING AND DO YOUR HOMEWORK FIRST cheers guys

A few tools

A few tools that are required for bantam maintenance

notice the c spanner for getting the exhaust off.......also the oil seal holder tool ....dead handy

here we have various pliers.......the yellow ones are for spring clips etc

The usual screw drivers........notice the old tooth brushes......dead handy for cleaning those little nooks and crannies.......and the offset screw drivers very useful

how long

I have been asked how long are the spacers on the side covers

A shade over 2 inches to my reckoning

Tools

You don't need that many tools to build a bantam .....as time goes on ill picture the tools i use.......here is my small socket set i bought from halfords........there is metric and imperial sockets in there......also a screw driver with various bits.......i also bought the little extension pictured at the side they are really handy and allow you to get around the bike easily ..........i cant remember what i paid for this set but i can say it has been worth every penny

front brakes

 When fitting your front wheel back make sure you fasten the brake plate to the fork leg

I got asked the question why doesn't my front brake work ? one simple thing to check is the brake arm is on the correct way round .........put it the wrong way and the brakes work but not very well !

 Everything looks in order ! cup of tea time !!!!!!!!!!!!!!!!!!!!

Tip for the day !

Hi guys well my tip today is be organised and carry plenty of those little bits you may need........here is a picture of my box of fibre washers cable ties and split pins.........when i visit auto jumbles i tend to buy bits like these then store them in these handy boxes at home so i know i have got those little bits that you tend to forget when ordering parts.......for example when i rebuilt the forks i needed two new fibre washers for the drain plugs hey presto

dont forget !

Of course before pouring your oil in make sure you have fitted the drain plug at the bottom of the fork leg

and don't forget the little fibre washer

Getting there

Slide the fork legs into the stanchions......................

pour in 175ml of 20w/50 oil

put the washer before screwing the top nut on

Add the small nut onto the spring

tighten using a socket set

time for a break !!!!!!!!

coming together

push the stanchion into the fork leg notice the second bush is slid on the stanchion so that the lip rests on top of the fork leg

put a smear of grease on the oil seal so it slides easily onto the stanchion without damage

tighten the oil seal holder down onto the fork leg notice my nice shiny new tool for tightening the oil seal holder up

oil seal

The new oil seal ready to go in the oil seal holder make sure the open end faces down towards the wheel when fitted onto the fork leg and make sure the oil seal holder is spotless

They push fit in i have used some compound to seal them in

i made sure everything was clean and no compound was in the gap in the seal

look at the springs

Look how well the springs cleaned up after the rust remover had been applied (see earlier post for rust remover)

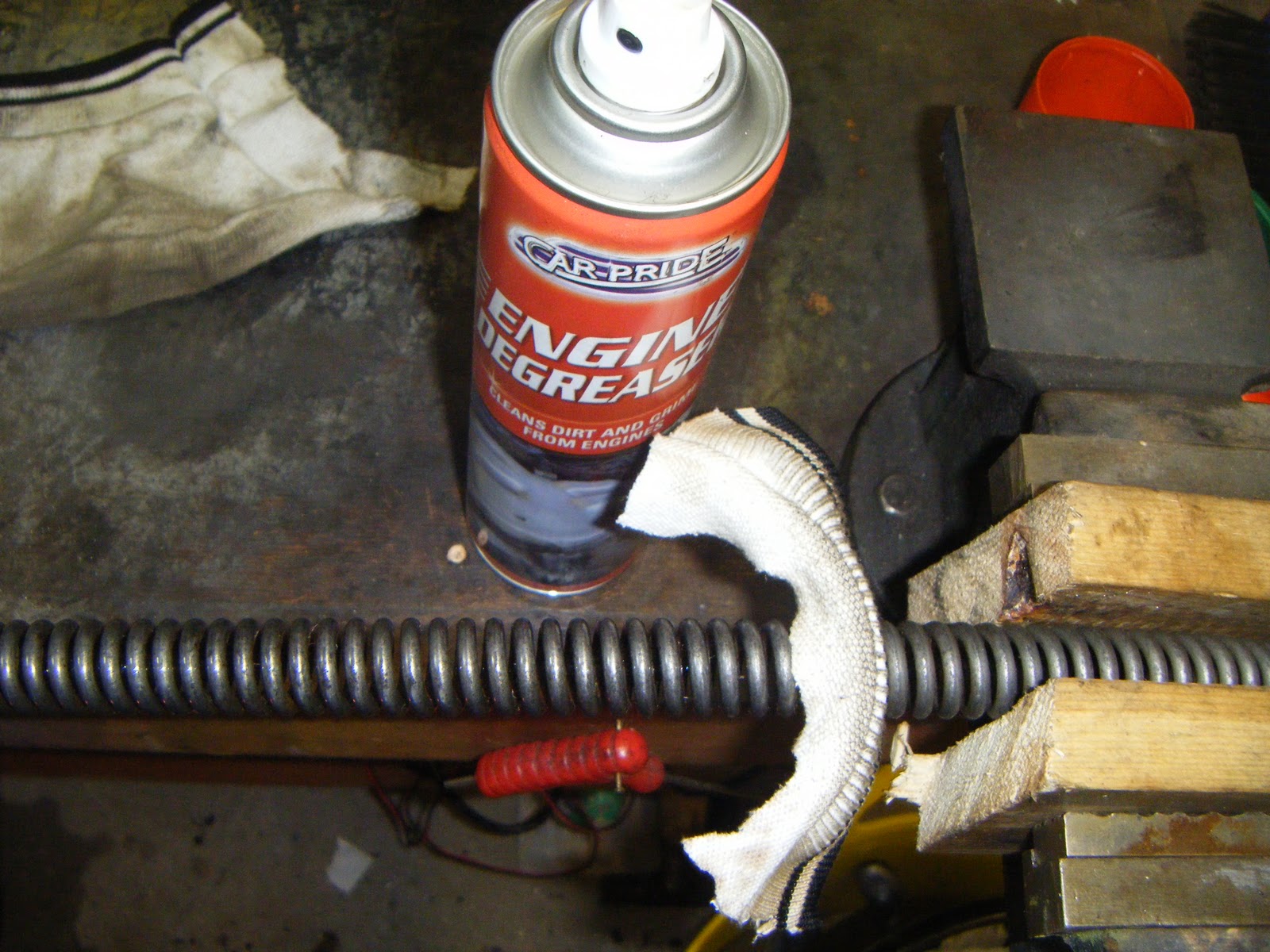

I used my grease remover and elbow grease to make sure they were spotless

Again i used my vice and wood to hold them in place while i worked on them (I'm chuffed)

fitting bushes to the stanchions

this is one of the new bushes for the fork leg.......compared to the old one it seems good quality....notice there is no split in the new one

The new stanchions look the part .......look how rusted the old ones were

Tap the bush to the stanchion (its a tight fit) make sure you use a rubber hammer

Use a punch to crimp the bush to the stanchion .......make sure all the holes on the bush match the ones on the stanchion then punch it with firm sharp blows.....notice the stanchion is in a vice and protected by wood so you don't damage the stanchion

parts arrived !

Well guys my parts have arrived today.....Fork stanchion's-bush kit-fork seals-fork seal holder tool-sprocket and nut/washer-I only ordered these on Wednesday and they are here today (Friday) Thank you Peter (from T&G) Anyhow i will be sorting the forks on Sunday so i will do a detailed and well photographed article on how i did it ......cross your fingers i can get it right !

wiring diagram

I made this diagram of my wiring loom when i fitted a new one.........the modern ones are slightly different and can confuse some of us......i found doing the diagram as i wired things up helped me to understand what made what work and why .......i have done the wires the correct colors too ! i have made several more that feature individual items such as front light or back light etc ......if anyone requires one let me know and i will publish them or email them to you......i know one club member has found them useful when he wired his d7

oil

I bought some 15w oil from an auto jumble at the weekend........i did ask for 20w/50 as per the bantam hand book recommendations but the guy i bought it from said they don't do it anymore and recommended 15w.......to be fair it was perfect for the job but my seals sprung a leak........one of the club members (somerstown) recommended this 20w/50 from ASDA so i bought some ready for the forks when my stanchions finally arrive .....£2.36p for a litre not bad considering each for leg takes 175m ........i could also use it in the gear box if i so wished

little bits !

Some of the parts that i have taken from my front forks while i am renovating them......notice once again how clean they are and they are stored on a clean cloth ready to go

Keep it topped up

When i go into my workshop i always put the battery on to charge more so in the winter as the cold really flattens battery's ......i bought the charger from Flea bay (it needs to be 6volt) for £12 including postage .....if you neglect the battery it wont last long

Stiff Clutch !

I have been struggling with a stiff clutch!!! yes i said clutch!!! any how a few pics to show the said clutch claw getting some attention........Notice how clean and tidy everything is (my hands were filthy) I removed the claw cleaned and re greased.........then oiled the cable ........and using pliers bent the claw back to its original position (technical i know)

keep it clean !

On my journey over the last couple of years i have realised one thing......its most important to keep every thing spotless and clean (its not really in my nature) one of the products i use most of the time is this engine degrease .....it gets rid of muck and grime easily and best of all it costs £1.10 per tin CHEERS

Product information

Good old copper grease.......it helps prevent your little bolts/screws from seizing up......i use it where ever applicable.....this tube has lasted for years .....i have even stepped on it UPS !!!!!!!!!!!!!
